Rear Brake Assembly Atv Quad Caliper 50Cc 70Cc 90Cc 110Cc 125Cc Master Cylinder



Item out of Stock
Elementor single product #8277
Elementor Single Product #8277
Elementor Single Product #8277

Out of stock

Goes well with....

  • Rear Brake Assembly Atv Quad Caliper 50Cc 70Cc 90Cc 110Cc 125Cc Master Cylinder

  • This type is operated from the foot brake lever. There is a pre fitted braided hydraulic cable that joins the two components
  • Comes complete with brake fluid so ready to fit and use with no bleeding
  • Fits many pit bikes 50cc – 140cc. Used on some Stomps, WPB, Demon X, M2R, Orion, Braaap, DHZ, Pitster Pro, Atomic, Piranha SSR and many others

This brand new replacement rear complete brake kit is one of a wide range that we sell which fit Chinese pit bikes 110cc to 150cc.

Fits some stomps, Demon X models, Pumas and many others.

Come complete with fluid so ready to fit and use with no bleeding.

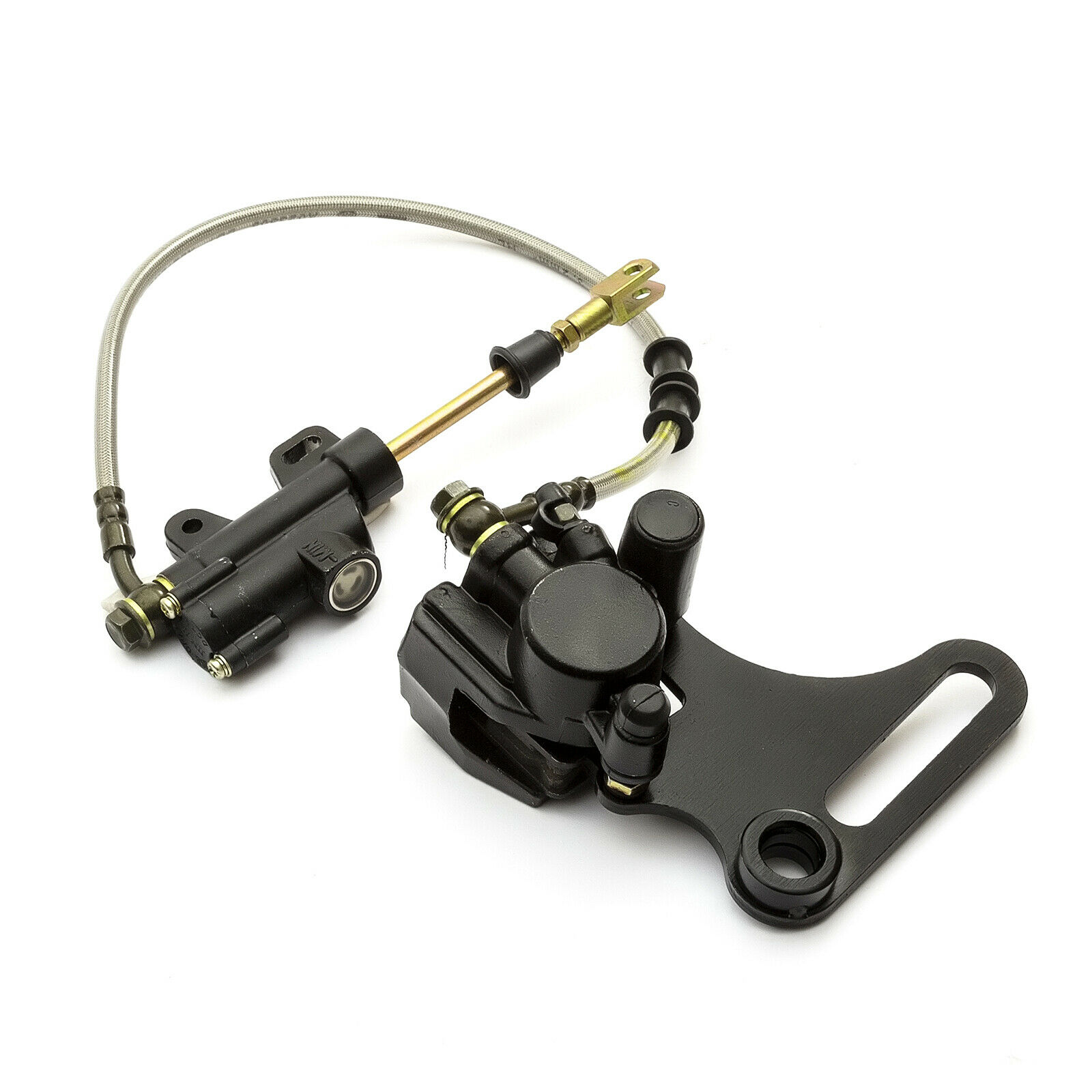

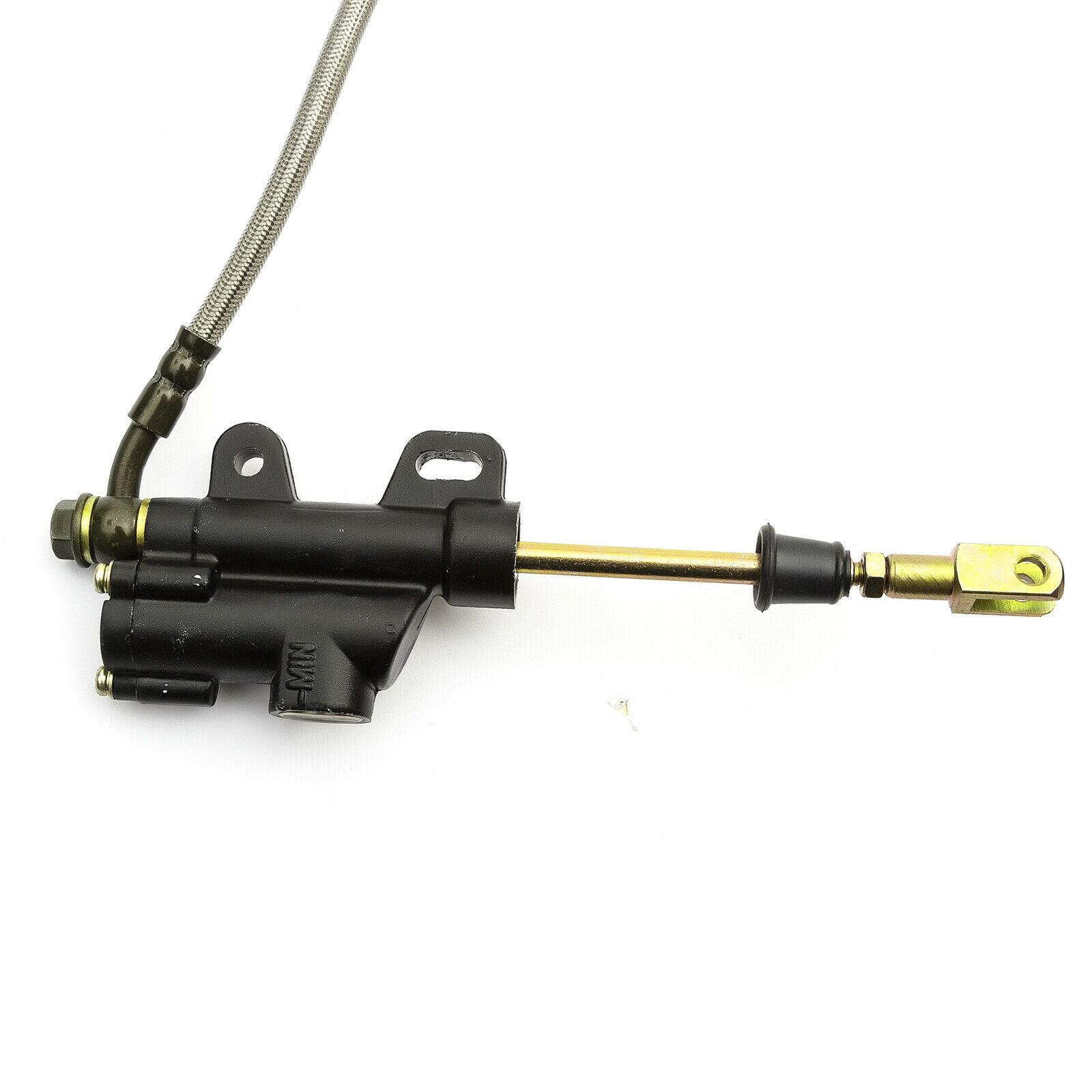

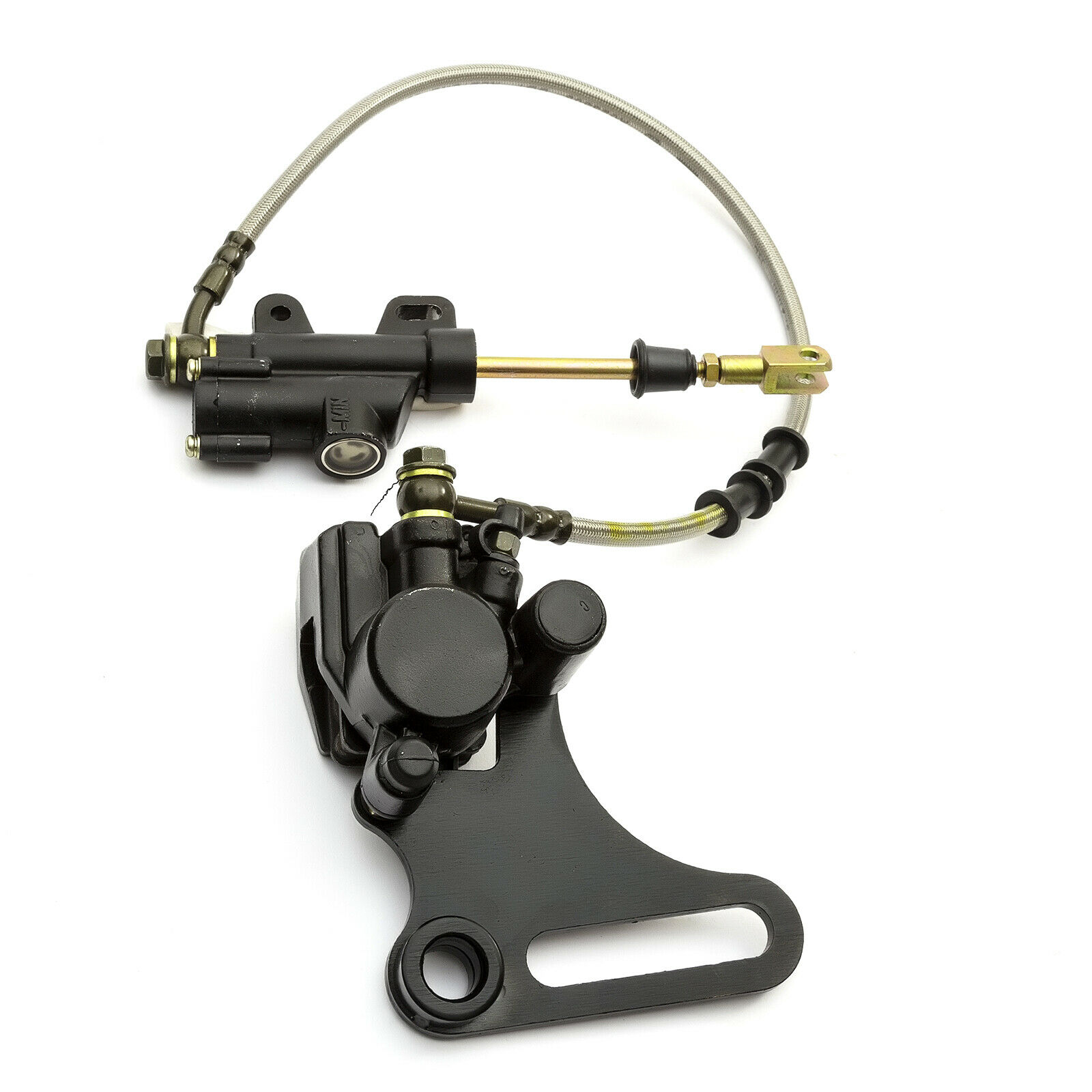

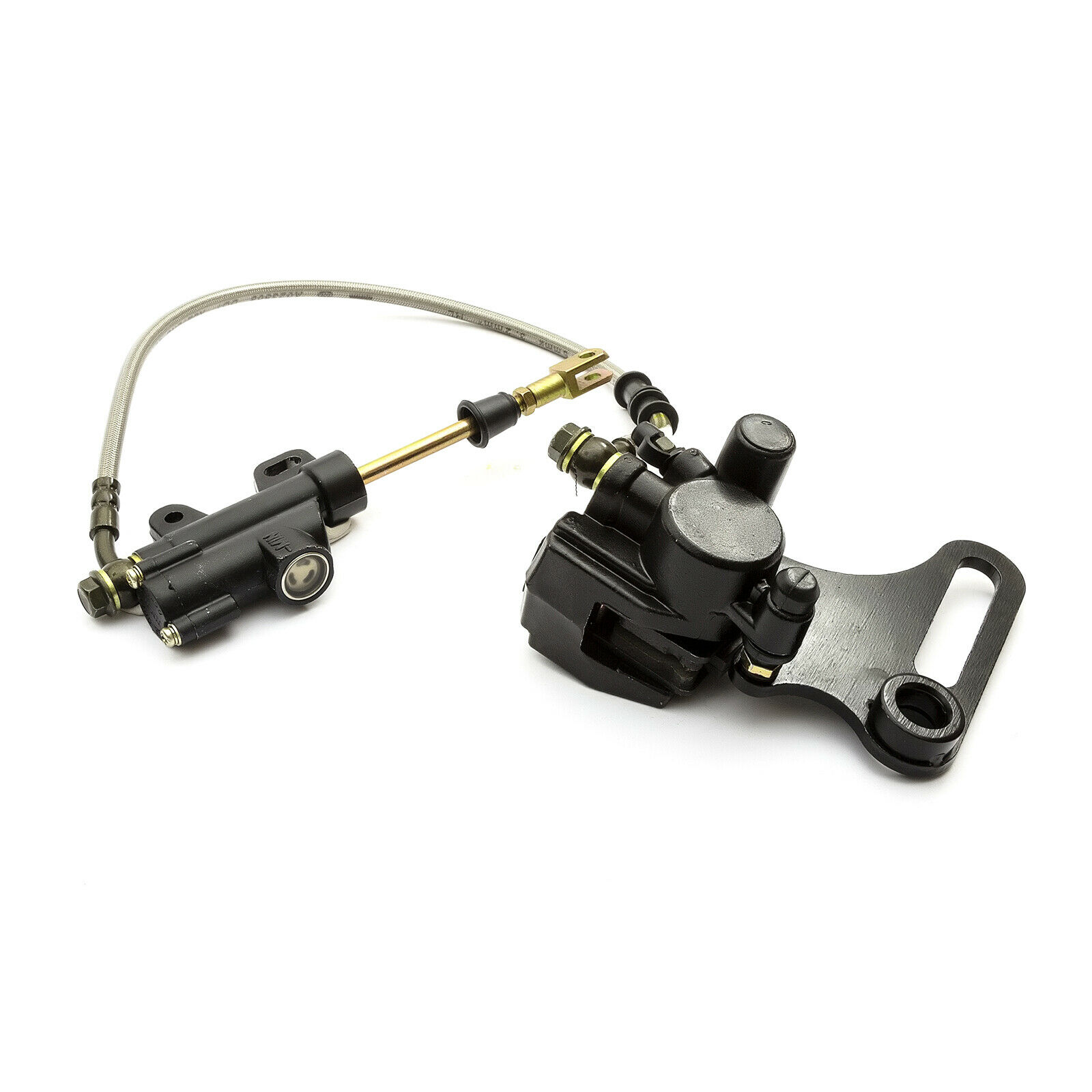

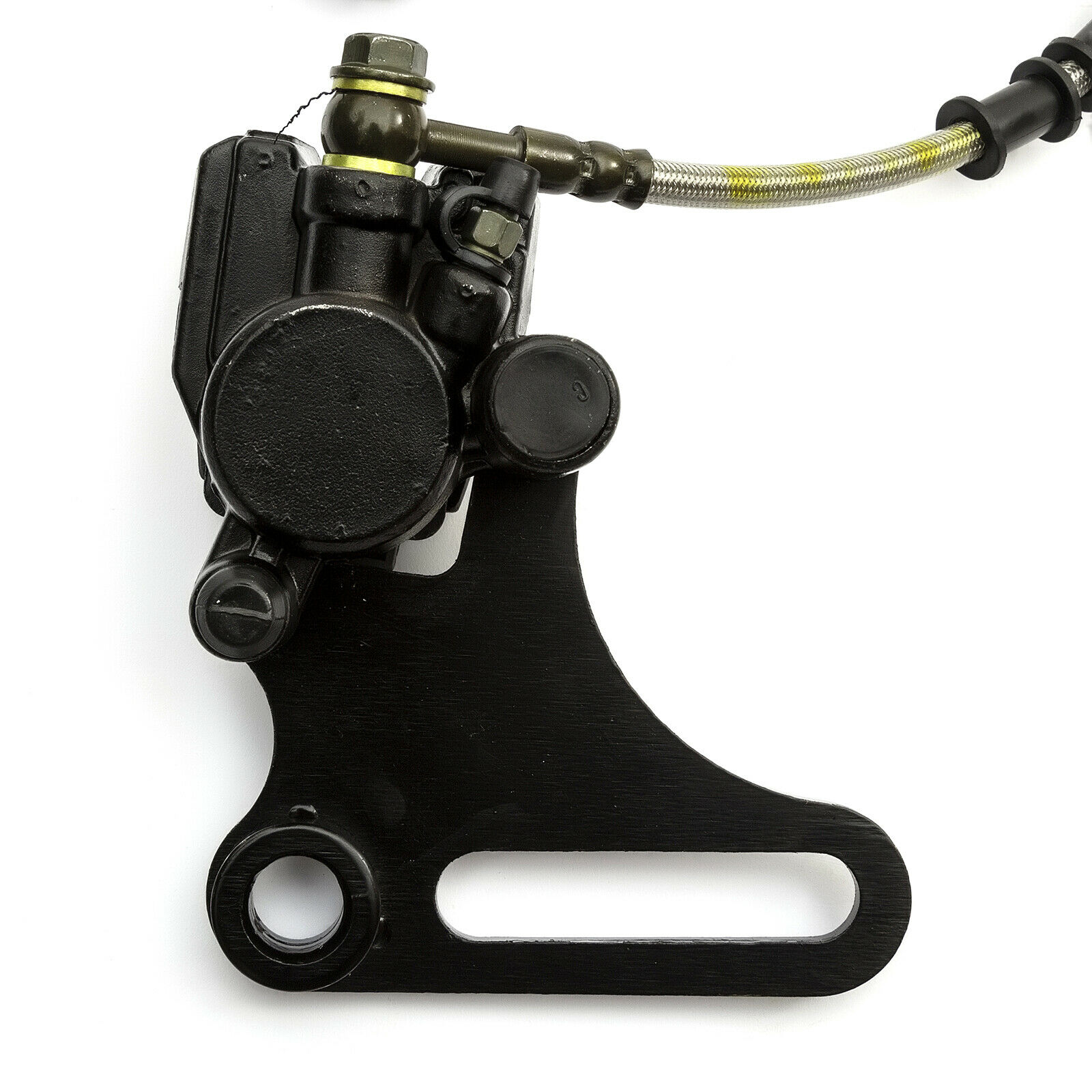

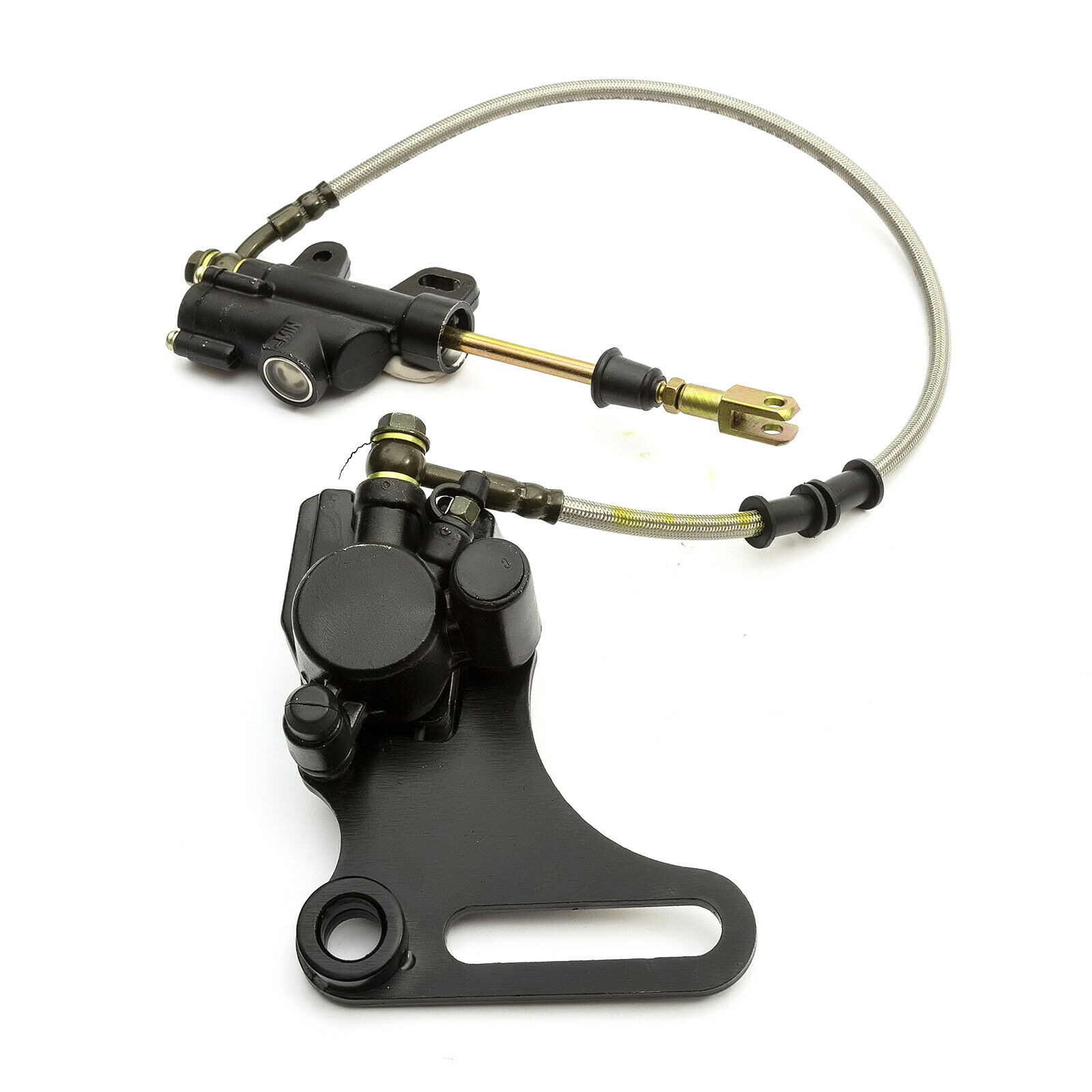

Kit includes master cylinder, braided hose and calliper complete with bracket and pads.

Buyers will receive one complete brake as pictured. Different complete brake kits include different parts, so please check the images carefully to see exactly what is included with the item. Please measure your old brake set-up prior to purchase to ensure you order the right type for your machine. Things to check are the overall dimensions of the calliper, hose, lever, brake disc, and master cylinder (if these are included in the mages), particularly the distance between the fixing holes which should be measured centre of eye to centre of eye.

The big brands of machines use different kits on different models so please measure your old parts carefully. The advantage of replacing the complete brake is you get all the individual components for half the price compared to buying them individually, what’s more it won’t need bleeding. If your calliper or master cylinder is either leaking fluid or feeling spongy then it may well need replacing. Complete kits provide the easy solution for what can otherwise be a messy and complicated job.

Key Features

  • Complete brakes are all sourced from machine manufacturers to ensure the quality and performance are matched to the machine the brake is designed for
  • Most of our complete kits come assembled and pre bled, saving you money and time, please check the pictures for details
  • All kits include heavy duty pads and seals to ensure long life and durable performance


Includes Pads?: Yes
Colour: Black
Cable or Hydraulic?: Hydraulic
Calliper Overall Height (excluding operation arm, if present): 157.02 mm / 6.18 inches
Calliper Overall Length (excluding operation arm, if present): 118.70 mm / 4.67 inches
Calliper Overall Width (excluding operation arm, if present): 81.56 mm / 3.21 inches
Compatible Brake Disc Thickness: 4 mm / 0.16 inches
Height Excluding Bracket: 100.17 mm / 3.94 inches
Width Excluding Bracket: 79.68 mm / 3.14 inches
Diameter of Fixing Holes (Master Cylinder): 6.27 mm / 0.25 inches
Diameter of Fixing Hole (Calliper Bracket): 14.95 mm / 0.59 inches
Height of Calliper: 84 mm / 3.31 inches
Distance Between Fixing Holes (Centre of Eye to Centre of Eye (Master Cylinder)): 43.97 mm / 1.73 inches
Length of Oil Pipe: 570 mm / 22.44 inches

Additional information

Weight 1 kg
